Multi-Channel Energy Dispersive Spectroscopy

Through the use of novel imaging approaches that integrate cutting edge advances in both hardware and software, we have developed a new set of research tools for the high throughput compositional analysis of heterogenous biological and synthetic materials.

The Wide-Field Electron Optics Laboratory specializes in the development of new Scanning Electron Microscopy imaging techniques for the high-throughput structural and compositional analysis of hierarchically ordered biological materials and synthetic constructs. Tech.html

Imaging

3D Printing

Publications

News

Gallery

Contact

Team

Research


(Return to Imaging Techniques) Tech.html

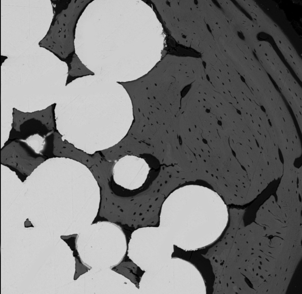

Trabecular bone growth into polymeric scaffolds Field diameters: 5 mm G-BioMed.html
High-throughput characterization of bone growth into porous titanium (upper) and polymeric (lower) medical implants Upper map color code: Ca Ti Lower map color code: C CaG-BioMed.html
Beyond the analysis of architectural materials, these techniques have the potential to profoundly influence how large biomedical data sets investigating bone healing and growth are analyzed.G-BioMed.html

2000 year old Roman wall painting

Image width: 5 mm

Map color code:  Ca  Hg/S  Si  Al

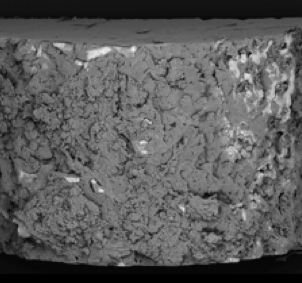

Modern concrete sample

Image width: 5 mm

Map color code:  Al  Si  Ca  Fe

BSE Image

EDS Map
